How to Build a DIY Vocal Booth for Under $85

April 26, 2020
Learn how to build a budget-friendly vocal recording booth at home in under 45 minutes.
Affiliate Disclosure: Our content may contain affiliate links to products we use and love. If you take action (i.e. subscribe, make a purchase) after clicking one of these links, we'll earn a bit of money to create more helpful content like this.

Recording vocals in a vocal booth will allow you to capture dry vocal recordings, free of undesirable reverb. Commercial vocal booths cost thousands of dollars, but it’s possible to create your own vocal booth for a fraction of the cost. In this guide, I’m going to show you how to build a DIY vocal booth for under $85.

Some spaces, like opera halls, produce a very pleasant reverb, but bedrooms do not. When you record vocals in an empty bedroom, the flat reflective walls will make your vocalist sound like they’re singing inside a tin can.

You should do what you can to reduce reverb when recording at home. It’s easier to apply reverb to dry vocals using reverb plugins than it is to tame reverb using a de-reverb plugin. The control that a reverb plugin provides will allow you to make your vocals sound professional once you start mixing them.

SPONSORED

From a difficulty perspective, building this vocal booth is quite simple. When you’re not using the vocal booth, you’ll be able to quickly disassemble it and store it within a drawer or closet.

I’ve included the materials you'll need for this project below, along with step-by-step instructions on how to build the vocal booth.

Required Materials

You’ll need 3 moving blankets, a grommet kit, 8 command hooks, 4 drywall anchors, 4 screw eye hooks, and 4 carabiners.

You can significantly reduce the cost of this project if you have a few friends who want to build vocal booths as well. By purchasing a 12 pack of moving blankets and splitting the rest of the supplies, you’re looking at a total project cost of around $40 per person.

The tools you'll need for this project include a measuring tape, hammer, drill, drill bits, level, and step stool.

Where to Build Your Vocal Booth

This vocal booth is meant to be installed in the corner of your room. Your vocalist will face the center of the room, with their back toward the corner, and sing into a floating moving blanket suspended from the ceiling. There will be a moving blanket hanging on each wall behind your vocalist to absorb sound as well.

The moving blanket floating in front of your vocalist will absorb first reflections and prevent the vocalist’s voice from resonating throughout the room. Late reflections will get absorbed by the moving blankets behind your vocalist. The angle of all the moving blankets in relation to one another will also prevent flutter echo.

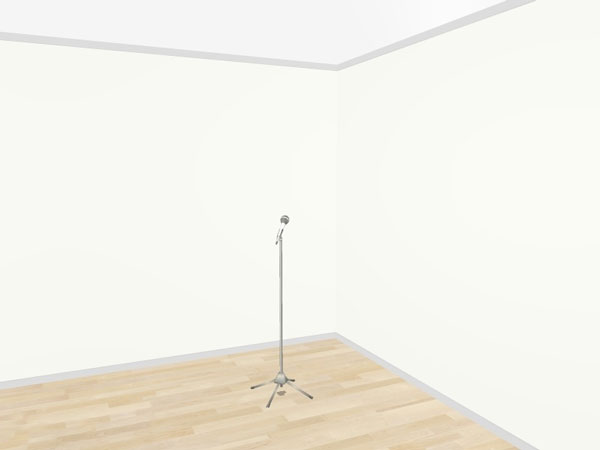

An image of a microphone set up in the corner of an untreated room.
Figure 1: A microphone set up in the corner of an untreated room.

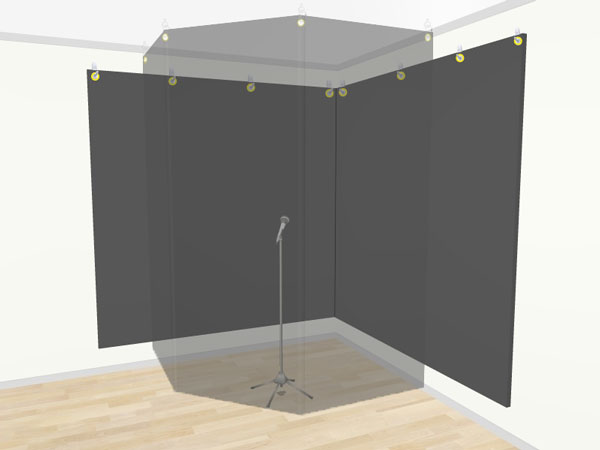

An image of a vocal recording booth set up in the corner of a room.
Figure 2: A vocal recording booth set up in the corner of a room.

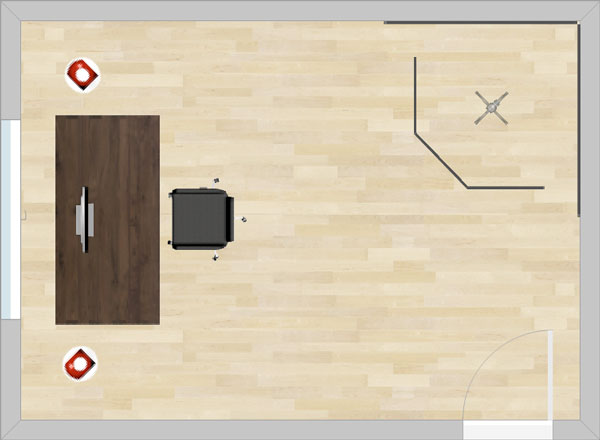

An image of a home studio floor plan containing a vocal booth in the top-right corner.
Figure 3: A home studio floor plan containing the vocal booth from Figure 2 in the top-right corner.

Moving blankets aren’t thick enough to absorb bass frequencies, but a vocalist isn’t capable of producing low-end frequencies with enough energy to resonate prominently through your room anyways. For mixing and mastering purposes, sound treating a studio with moving blankets is less than ideal, but they’re perfect for building a vocal recording booth.

Step-by-Step Instructions

Once you have all the materials that you need, it shouldn’t take more than 45 minutes to build your vocal booth. With the help of a friend, you should be able to complete this project even faster.

1. Install Grommets into Your Moving Blankets

You'll be installing grommets into your moving blankets so that you're able to hang hang them. Along one of the short edges of each of your moving blankets, cut a small hole every 2 feet and install a grommet using your grommet kit.

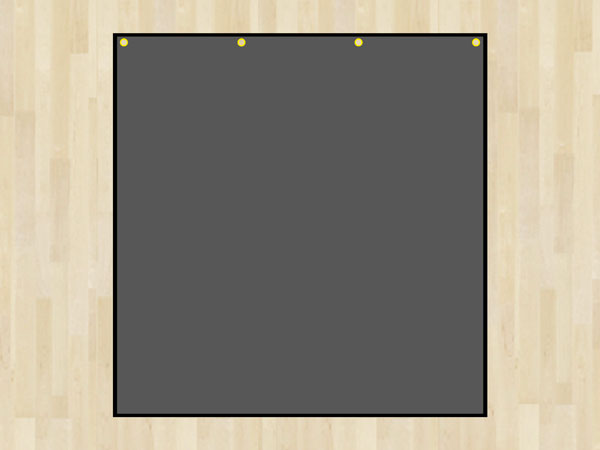

An image of grommets installed every 2 feet, along the top edge of a moving blanket.
Figure 4: Grommets installed every 2 feet, along the top edge of a moving blanket.

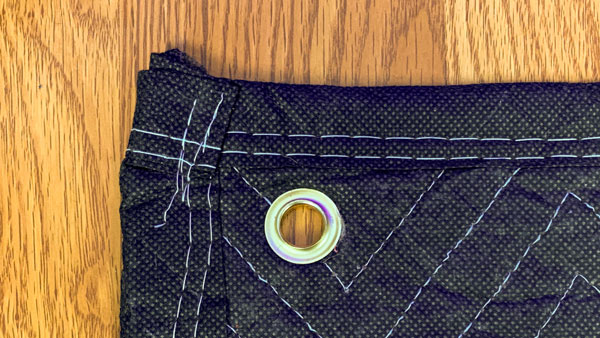

An image of a close-up view of a grommet installed into a moving blanket.
Figure 5: A close-up view of a grommet installed into a moving blanket.

2. Stick Command Hooks to the Walls

Starting at the corner of the room where you’ll be recording, stick a command hook near the top of the right side wall every 2 feet. Repeat this process for the left side wall. Make sure that the Command hooks are placed high enough that the moving blankets won't touch the ground when you hang them.

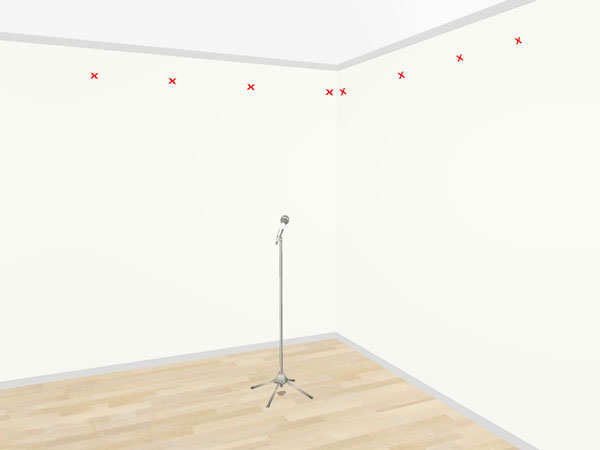

An image of points marked 2 feet apart where Command hooks will be installed.
Figure 6: Points marked 2 feet apart where Command hooks will be installed.

3. Hang the Wall-Mounted Moving Blankets

The grommets installed in the moving blankets should align perfectly with the Command hooks on your walls. Command hooks are removable, so you can reposition them if necessary.

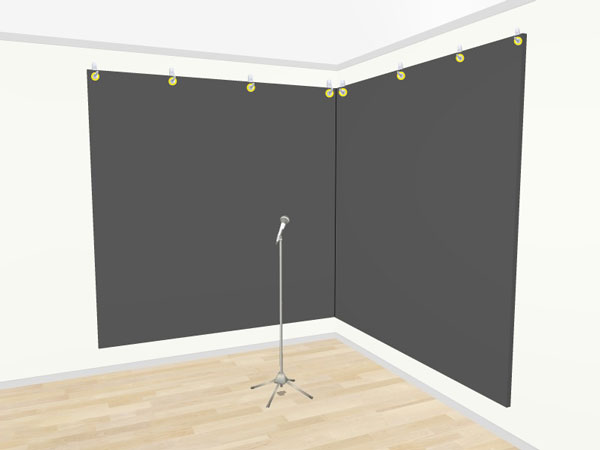

An image of moving blankets hung on Command hooks.
Figure 7: Moving blankets hung on Command hooks.

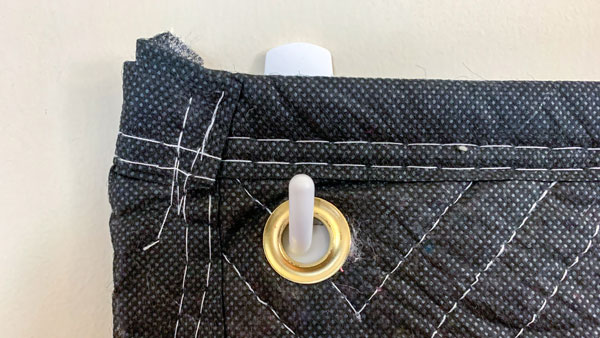

An image of a grommet hanging from a Command hook.
Figure 8: A grommet hanging from a Command hook.

4. Install Drywall Anchors into Your Ceiling

Starting in the corner that you’ll be recording vocals in, measure 5 feet toward the center of your room, along the ceiling, and mark this point with a pencil.

Learn Music Production On The Go

With Black Ghost Audio's FREE Podcast
LISTEN NOW
SPONSORED

Now you need to mark the corners of a semi-hexagon, using the previous mark you made as the semi-hexagon’s center point. The distance between each corner of the semi-hexagon should be 2 feet.

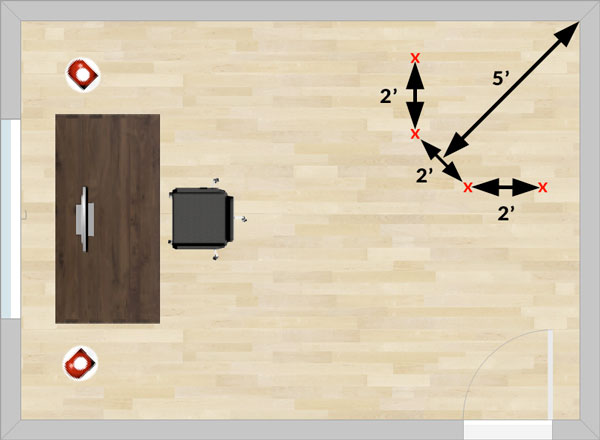

An image of points marked 2 feet apart where drywall anchors will be installed.
Figure 9: Points marked 2 feet apart where drywall anchors will be installed.

Drill pilot holes into your ceiling at the marked locations and install the drywall anchors. Twist a screw eye hook into each of the ceiling mounted drywall anchors, and then clip a carabiner to each hook. Your completed ceiling assemblies should match the following image.

An image of a drywall anchor installed into the ceiling with a screw eye hook screwed into it, and a carabiner latched onto the screw eye hook.
Figure 10: A drywall anchor installed into the ceiling with a screw eye hook screwed into it, and a carabiner latched onto the screw eye hook.

5. Hang the Floating Moving Blanket

Hang the floating moving blanket by latching each grommet into one of the available carabiners.

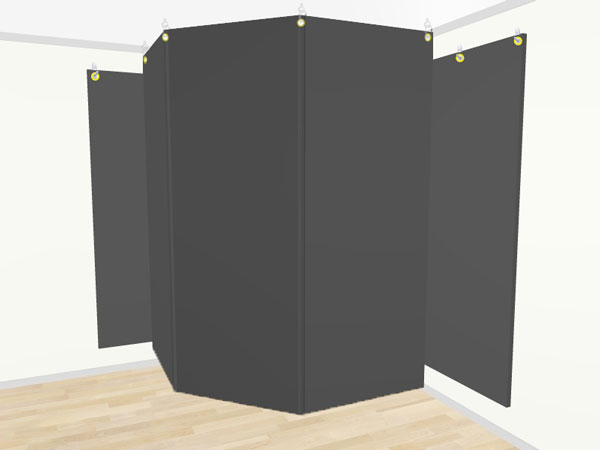

An image of a moving blanket hung from the ceiling.
Figure 11: A moving blanket hung from the ceiling.

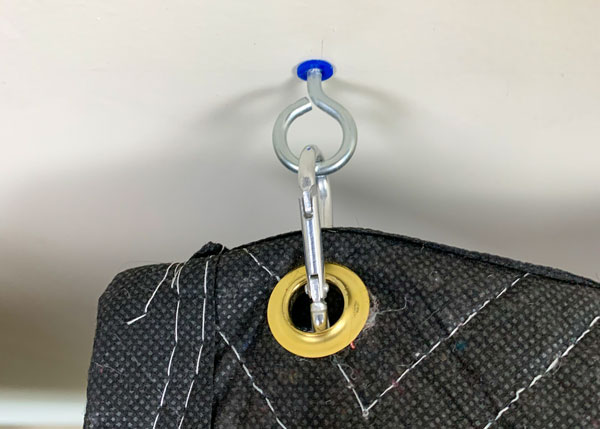

An image of a grommet latched into a carabiner.
Figure 12: A grommet latched into a carabiner.

Deconstructing Your Vocal Booth

Moving blankets are a bit of an eyesore and not everyone wants to permanently hang moving blankets in their room. One of the best parts about this vocal booth is that you can quickly disassemble it—take down the moving blankets, fold them up, and put them away. The ceiling assemblies and Command hooks aren’t meant to be removed, but they draw very little attention to themselves, so you’ll barely notice them.

As far as budget vocal booths go, this is one of the most budget-friendly and comprehensive options available. This vocal booth doesn’t look as fancy as a vocal booth worth thousands of dollars, but you need to pick and choose your battles when working with an $85 budget.

Looking for another fun DIY project? Learn how to build your own acoustic panels.
