Audio Signal Levels Explained: Mic, Instrument, Line, and Speaker

July 14, 2020
by
Charles Hoffman
Learn the difference between mic level signal, instrument level signal, line level signal, and speaker level signal. Use these concepts to capture recordings free of excess noise and distortion, while in the studio and on-stage.
Affiliate Disclosure: This post may contain affiliate links to certain products. If you take action (i.e. subscribe, make a purchase) after clicking one of these links, Black Ghost Audio will earn a commission.

Mic, instrument, line, and speaker level signals differ when it comes to their voltage levels. From the weakest to strongest voltage level, it goes mic level signal, instrument level signal, line level signal, and then speaker level signal.

The exact level of a signal depends on things like how loud a sound source is, so it makes the most sense to just think about these different signal levels as weaker or stronger than one another, as opposed to trying to define specific voltage levels for each signal type.

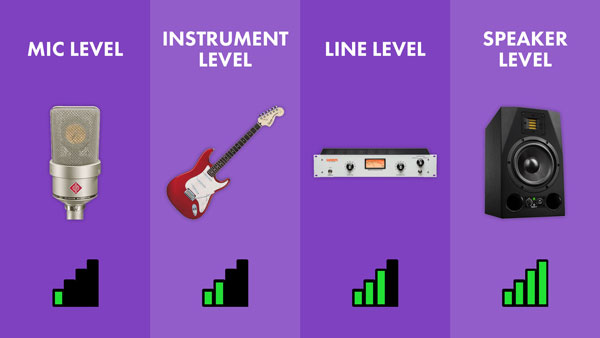

An image of a comparison of mic level, instrumental level, line level, and speaker level signal strengths.
Figure 1: A comparison of mic level, instrumental level, line level, and speaker level signal strengths.

Line Level Signal

If you feed a mic or instrument level signal into a line input on a piece of hardware, you’ll end up with a very weak and, in some cases, almost inaudible sound. This is incredibly problematic when you run the signal through a device that is input-level dependent, like a compressor. If the input signal isn’t strong enough to drive the line input, the signal won’t breach the compressor’s threshold level, so it’s not going to apply compression.

Line level signal is often referred to as the “standard” pro audio signal level because most external hardware like EQs, reverbs, and delays are built to accept line level signals. Other devices that can accept line level signals include mixing consoles and audio interfaces.

In the same way that it’s possible to feed a device a signal that’s too weak, it’s just easy to feed a device a signal that’s too strong. For example, if a device is meant to accept a mic level signal or an instrument level signal, but you feed it a line level signal, you’ll overdrive the device, which can result in heavy distortion.

There are actually two common types of line voltage levels, which include -10 dBV and +4 dBu. The inputs and outputs on consumer electronics are usually designed to work optimally with -10 dBV line signals, while the inputs and outputs on pro audio gear are often designed to work optimally with +4 dBu line level signals, which are a bit stronger than -10 dBV signals.

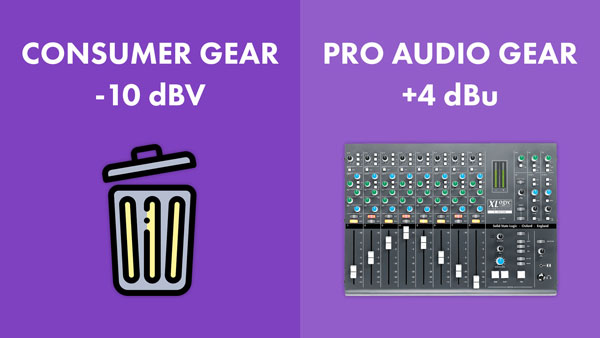

An image of -10 dBV line level consumer gear vs. +4dBu line level pro audio gear.
Figure 2: -10 dBV line level consumer gear vs. +4dBu line level pro audio gear.

If you’re working solely with pro audio gear, most of it likely calls for a +4 dBu line level signal, but some pro audio gear might have a switch that allows you swap inputs between a -10 dBV and +4 dBu mode. This lets you make use of both consumer and professional-level audio equipment.

Connecting a -10 dBV output to a +4 dBu input will always increase the noise floor. However, you’ll usually end up with a cleaner signal if you boost the gain within your pro audio gear, as opposed to overdriving the outputs of your consumer gear.

Routing signal the other way, from a +4 dBu output to a -10 dBV input, can overload the inputs on consumer gear. In this case, you’ll want to turn down the output of your +4 dBu gear.

Pieces of gear that use these two line level signal variations can be connected to each other, but just make sure that you boost or attenuate the signal within your pro audio gear to accommodate your consumer gear. In general, you want to stick to using gear with +4 dBu line inputs and outputs whenever you can, since it provides more headroom than -10 dBV gear.

Mic Level Signal

It’s clear that you often need to boost mic level and instrument level signals to line level somehow, but how do you go about doing this?

Well, a mic preamp is designed to boost the level of mic level signals, which are usually produced by microphones. If you own an audio interface, there’s a good chance that there’s at least one mic preamp built into it, but there are standalone mic preamps as well.

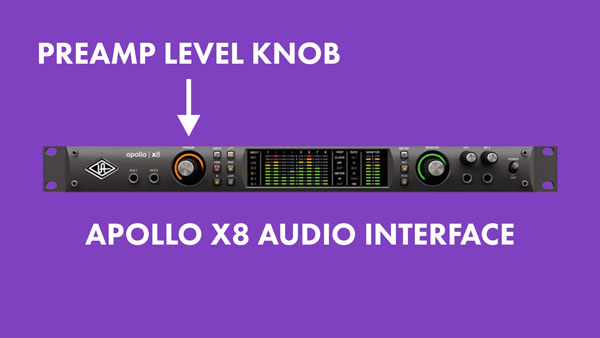

An image of the preamp level knob on an Apollo x8 audio interface.
Figure 3: The preamp level knob on an Apollo x8 audio interface.

Fundamentally, mic preamps all do the same thing, which is boost mic level signal to line level, but some mic preamps introduce a certain desirable character, while others attempt to provide clarity. Various standalone preamps also include built-in EQs or compressors, which provide additional functionality.

In some studios, you’ll see preamp chassis, which are meant to house 500 series mic preamps. Recording engineers will often own a couple of these little preamps, which gives them the option to apply various tonal qualities to their recordings, depending on which preamp they choose to use.

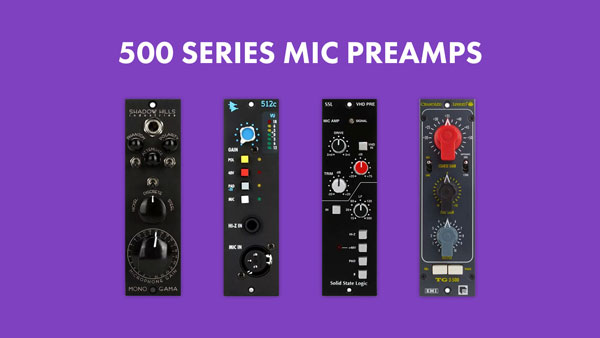

An image of 500 series mic preamps that include a Shadow Hills Mono Gama, API 512c, Solid State Logic VHD, and Chandler Limited TG2.
Figure 4: 500 series mic preamps that include a Shadow Hills Mono Gama, API 512c, Solid State Logic VHD, and Chandler Limited TG2.

When you record with the preamps built into your audio interface, you’re stuck with the one option. Although, most audio interfaces include preamps that sound pretty darn good. Even the preamps found in entry-level audio interfaces can produce professional-quality results.

You’re not going to hear too many people blame a poor recording on their preamps, but an assortment of standalone mic preamps does provide a little more versatility, and may make it slightly easier to find the sound you’re looking for.

Instrument Level Signals

Electric guitars and bass guitars produce high-impedance, unbalanced instrument level signals.

The first issue here is that the pick-ups found in these instruments produce a relatively high impedance signal, so you need to run them into an input with an extremely high impedance. Unfortunately, not all audio gear provides high-impedance inputs. When you run a high-impedance signal into a low-impedance input, there’s going to be a loss of top-end frequency content, which you probably don’t want.

The second issue is that the signal that guitars and basses produce is unbalanced; this means that if you try to run the signal through cables over roughly 25 feet, you’ll introduce unwanted noise to the signal. Factors like how well-shielded your cables are, dictate the severity of the noise. However, at a certain point, heavily shielded cables aren’t going to cut it.

You need a device that’s going to provide a high-impedance input, and convert the incoming high-impedance, unbalanced signal into a low-impedance, balanced signal. Luckily, this is exactly what a direct inject box does—these are also commonly referred to as DI boxes. You plug your electric guitar or bass into the DI’s input jack, and it produces a low-impedance mic level signal.

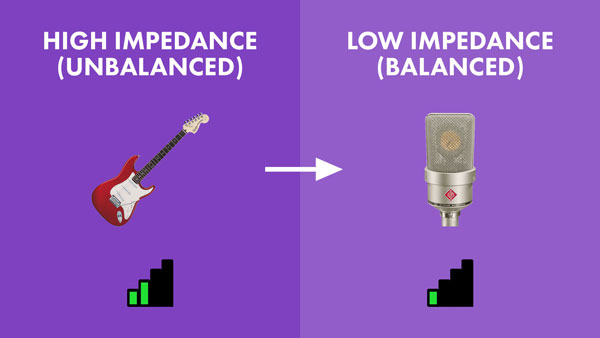

An image of a high impedance, unbalanced instrument level signal converted into a low impedance, balanced mic level signal.
Figure 5: A high impedance, unbalanced instrument level signal converted into a low impedance, balanced mic level signal.

You can then use a balanced XLR cable to run the signal over a significant distance without worrying about noise, and process it just like you would any other mic level signal. If you wanted to run it into a house mixer or PA, you would now be able to do so.

There are both passive DIs and active DIs. Passive DIs isolate ground-level voltages and eliminate ground loops; they’re great for instruments with a strong output, and they’re also inexpensive and durable. Because of this, they’re an extremely popular choice.

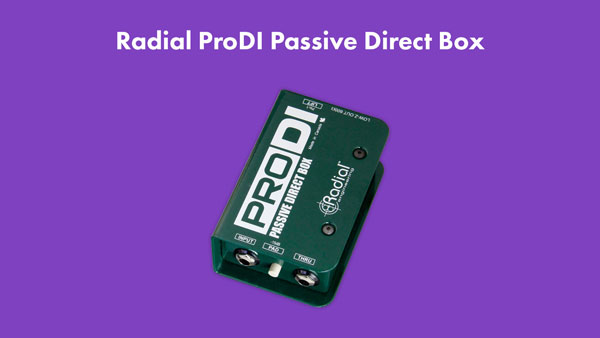

An image of a Radial ProDI passive direct box.
Figure 6: A Radial ProDI passive direct box.

Active DIs contain a preamp, while passive DIs do not. They can help drive long cable runs, and boost the gain of weak signals. Since they tend to provide more headroom than passive DIs, they’re also well-suited for instruments with active pick-ups. The downside of active DIs is that they require a power supply, which can be a bit of an inconvenience, and on top of that, they’re often quite a bit more expensive than passive DIs since they’re internally more complex devices.

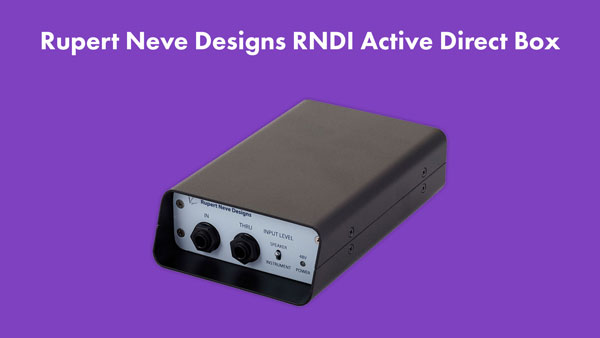

An image of a Rupert Neve Designs RNDI active direct box.
Figure 7: A Rupert Neve Designs RNDI active direct box.

Many DI boxes include a throughput, in addition to a low-impedance mic level output. The throughput passes the high-impedance input signal directly through the device to a separate output, allowing you to route the signal into an on-stage amplifier. Amps have high-impedance inputs, so unsurprisingly, they accept high-impedance instrument level signals.

You can route the low-impedance mic level signal that a DI box produces to a PA, using balanced XLR cables, while running the high-impedance throughput signal to an amplifier simultaneously.

When it comes to recording, this set up lets you to record a guitar signal free of effects, while simultaneously recording a guitar signal run through pedal effects and an amp. To record the amp, you just set up a microphone in front of it. Then, you have the option to apply processing to the unaffected guitar signal in-the-box using plugins, or if you want, you can blend the dry guitar signal with the processed guitar signal you’ve recorded.

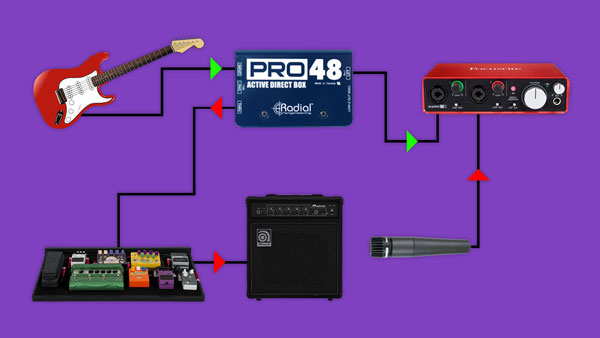

An image of a DI box being used to convert an instrument level signal into a low impedance mic level signal, while passing the high impedance version of the input signal to a pedalboard—via the DI box's throughput.
Figure 8: A DI box being used to convert an instrument level signal into a low impedance mic level signal, while passing the high impedance version of the input signal to a pedalboard—via the DI box's throughput.

For recording guitar at home, you probably don’t need a DI box, unless you want to split the signal in the way I just mentioned. Most audio interfaces have a high-impedance input, which is often indicated by the text “HI-Z.” If you plug your electric guitar or bass directly into a Hi-Z input on your audio interface, you don’t need a DI box. You can record your guitar directly into your digital audio workstation using the HI-Z input on your audio interface.

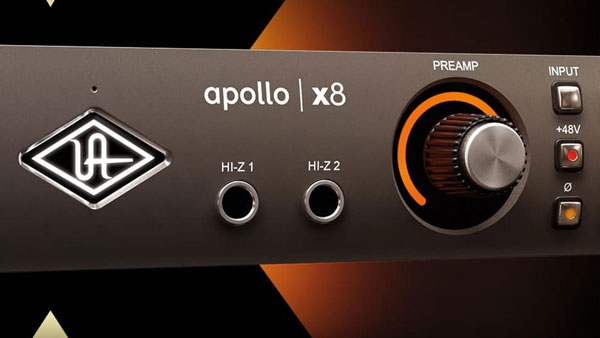

An image of two Hi-Z inputs on the front of an Apollo x8 audio interface.
Figure 9: Two Hi-Z inputs on the front of an Apollo x8 audio interface.

Speaker Level Signals

Speaker level signal is signal that has been amplified using an amplifier. When you run a line level signal into your studio monitors, the amplifiers built into your speakers boost the signal up to speaker level. Smaller speakers require less volts to produce sound waves, whereas large speakers require more volts.

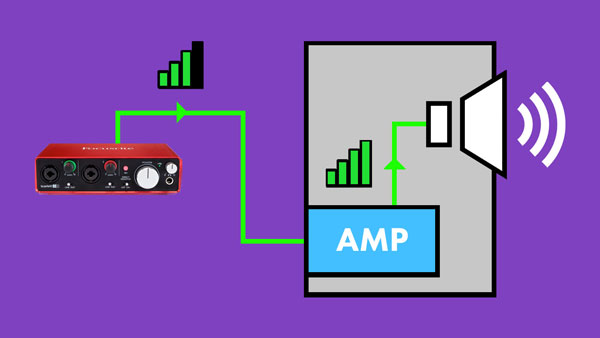

An image of a line level signal boosted to speaker level using an amp.
Figure 10: A line level signal boosted to speaker level using an amp.

If you find a speaker level output on a piece of hardware, like a power amp, be very cautious. Connecting this output to a mic, instrument, or line level input on a piece of gear can damage it. Make sure that you only connect speaker level outputs to speaker level inputs.

You’ll also want to make sure that you form these connections using speaker cables. Speaker cables are unshielded and use thick wires. If you use the wrong type of cable, like an instrument cable, which is shielded and contains thin wires, you can actually melt the cable, and damage your amplifier too.

Most companies label their cables, so it’s easy to tell which type of cable you’re dealing with. However, if you find yourself looking at a cable that’s not labelled, and you’re not 100% sure which type of cable it is, just unscrew the end of the cable and take a look inside.

An entry-level audio interface, like the Focusrite Scarlett 2i2, will allow you to record mic, instrument, and line level signals. If you're looking for a more robust recording solution, consider taking a look at Universal Audio's Apollo x8 audio interface.

To put your knowledge of the concepts covered in this article to the test, and learn how to create quickly customizable hardware processing chains, check out our video on "How to Set Up and Use a Patch Bay."
