What Is a DI Box? Do I Need One to Record Guitar?

If you don't know when to use a DI box, you might be damaging the quality of your guitar and bass recordings, and hurting your sound when performing live.
Disclosure: This post might contain "affiliate links." If you click on a link and make a purchase, Black Ghost Audio may earn a commission.

As a musician, audio engineer, or simply an audio enthusiast, the tools you use can make or break your sound. Among these, one device that often gets overlooked but plays a crucial role in sound quality and signal management is the DI box, or direct injection box. Many guitarists and bassists wonder, "What is a DI box?" and "Do I need a DI box to record guitar?"

In this comprehensive guide, we'll explore the fundamental role a DI box plays in both live performance and audio recording environments. We'll also dive into the science behind its operation, demonstrate its usage with common instruments like electric guitars and basses, discuss how to connect it to an amp, and finally, explain some of its valuable features like a ground lift.

What Does a DI Box Do?

A DI box, or direct input box, is a device that transforms high-impedance, unbalanced signals into low-impedance, balanced signals. By doing this, a DI box ensures the preservation of sound quality over long cable runs through noisy environments.

An image of a high-impedance unbalanced signal converted into a low-impedance balanced signal.
Figure 1: A high-impedance unbalanced signal converted into a low-impedance balanced signal.

Furthermore, DI boxes can match levels and impedances across different audio equipment, thereby avoiding distortion, noise, and signal loss. This makes them invaluable in resolving disparities between instruments and audio systems, contributing to an overall high-quality sound output.

How Does a DI Box Work?

DI boxes function using a transformer or electronic circuitry. When a high-impedance signal from an instrument enters the DI box, the input transformer's primary coil receives it. This coil generates a magnetic field, which induces a low-impedance signal in the secondary coil. The transformer then balances the signal, splitting it into two equal signals with opposite polarities.

At this point, you can run the two signals a significant distance using a single XLR cable. They'll naturally pick up noise along the cable run. However, when phase inversion occurs at the end of the cable run, the noise cancels out and you're left with a noise-free guitar or bass signal.

How to Use a DI Box for Electric Guitar

Connecting your electric guitar or bass to a DI box involves plugging the instrument into the DI box using an unblanaced 1/4" instrument cable, and then connecting the DI box's balanced output to an audio interface, mixing desk, or PA system using a balanced XLR cable.

An image of an electric guitar connected to a DI box, connected to a mixing console.
Figure 2: An electric guitar connected to a DI box, connected to a mixing console.

If you'd like to monitor your instrument's raw sound onstage, some DI boxes offer a "through" or "link" output to send the original signal to an amplifier.

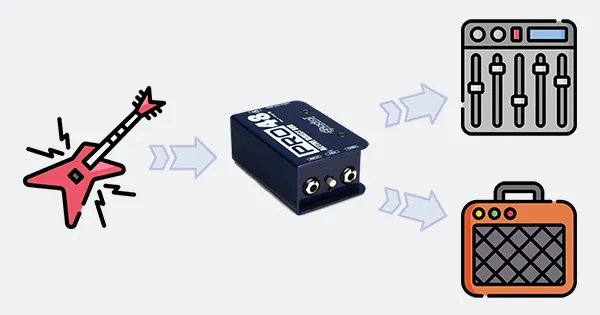

An image of a DI box splitting its input signal.
Figure 3: A DI box splitting its input signal.

When choosing a DI box, consider active DI boxes for passive instruments that lack a preamp, as they provide signal boost and transparency. If you're looking for a solid active DI box with +48V phantom power that won't break the bank, check out the Radial Pro48.

An image of a Radial Pro48 active DI box.
Figure 4: A Radial Pro48 active DI box.

For active instruments with a built-in preamp, passive DI boxes are recommended for their ruggedness and minimal distortion. I suggest the Radial ProDI if you're looking for a budget-friendly passive DI box.

An image of a Radial ProDI passive DI box.
Figure 5: A Radial ProDI passive DI box.

How to Connect a DI Box to an Amp

To use a DI Box with an amp, first plug your instrument into the "input" jack on the DI Box using an unbalanced 1/4" instrument cable.

An ad for a free checklist called 8 Steps to Producing Radio-Quality songs.

Then, take an XLR cable and connect it to the "output" on the DI Box, and connect the other end to your amplifier's input. If your amp doesn't have an XLR input, you may need a female XLR to male 1/4 inch adapter.

Do I Need a DI Box?

Let's take a look at a few different scenarios to determine whether or not you need a DI box. You might be surprised to learn that in many recording situations, you don't need one.

If you're recording guitar at home and want to capture the direct sound of your guitar without an amp, you don't need a DI box. Connect your guitar to the Hi-Z input on your audio interface using an unbalanced 1/4" instrument cable and you're ready to record.

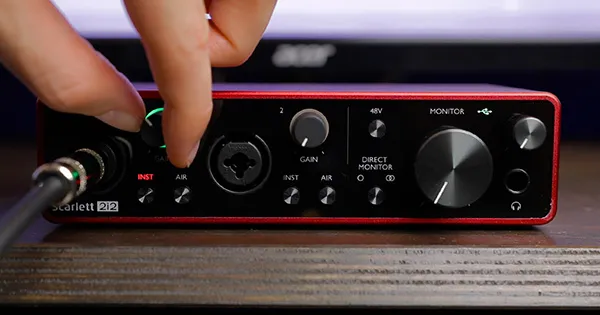

An image of an electric guitar cable plugged into the Hi-Z input of a Scarlett 2i2 audio interface.
Figure 6: An electric guitar cable plugged into the Hi-Z input of a Scarlett 2i2 audio interface.

What about if you're running recording your guitar through an amp? This is another situation in which you don't need a DI box. Connect your guitar to a pedal board, if you're using one, and then connect the pedal board to an amp. Set up a microphone in front of the amp and connect the microphone to a mic input on your audio interface, mixing console, or PA system.

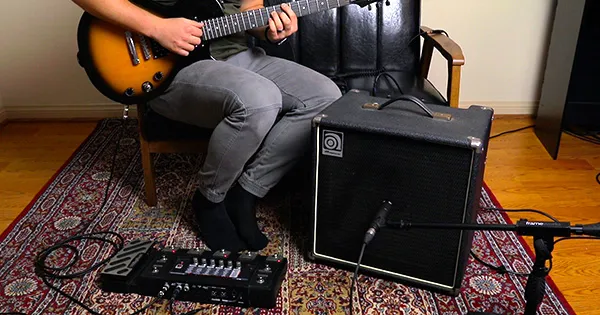

An image of a microphone positioned in front of a guitar amplifier.
Figure 7: A microphone positioned in front of a guitar amplifier.

So when does it make sense to use a DI box? Well, there are two primary situations you'll encounter. The first is when you need to run the signal produced by your guitar or bass a long distance. For example, if you need to use a 50 foot cable to reach a sound board, use a DI box to eliminate noise picked up along the cable run.

The second instance in which it makes sense to use a DI box is when you want to split your guitar signal; this allows you to record an unprocessed signal, in addition to a processed signal run through hardware effects and an amplifier. In your DAW, you can blend these two signals together.

A DI box with a "thru" function allows you to do this. One signal path converts the high-impedance unbalanced signal into a low-impedance balanced signal that you can record using a mic input on your audio interface.

The "thru" signal path allows you to record through a pedalboard and amp, capturing the signal using a microphone connected to a secondary mic input on your audio interface.

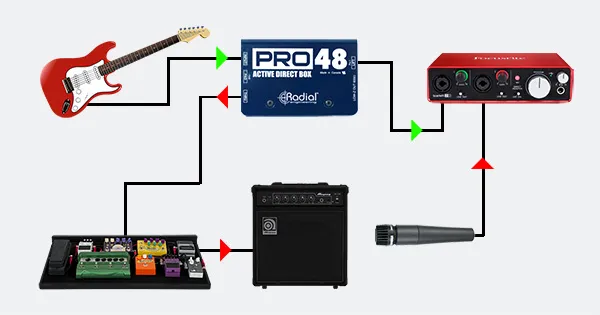

An image of a parallel recording setup using a DI box.
Figure 8: A parallel recording setup using a DI box.

What Is a Ground Lift on a DI Box?

A ground lift switch in a DI box can help reduce hum or buzz caused by ground loops. Additionally, DI boxes often come with an attenuation pad to prevent distortion from overly strong signals. Therefore, a DI box not only maintains the quality of a signal from a musical instrument but also provides practical features for a clean and interference-free performance or recording.

The following video features the Rupert Neve Designs RNDI 1-channel active DI box, which includes a ground lift. On the back of the unit, you'll see a switch that allows you to toggle between GND and LIFT mode. This DI box is pricier than the Radial Pro48 but it provides plenty of headroom. It also adds a warm round tone to your guitar signal that's hard to beat.

How Far Can You Run a Cable Without a DI Box?

The distance you can run an instrument cable without significant noise or signal degradation depends on a few factors, including the quality of the cable, the type of signal being transmitted, the impedance of the signal, and the environment in which the cable is running.

For unbalanced instrument cables (like typical guitar cables), the generally recommended maximum length is 20 feet (about 6 meters). This is because these types of cables are more susceptible to interference and signal degradation over longer lengths.

Balanced cables, such as XLR or TRS cables, can typically run much further—up to a few hundred feet—without significant noise or signal loss. This is because they use a design that cancels out most interference.

Keep in mind that these are general guidelines and your experience may vary. For instance, a high-quality unbalanced cable might perform well at greater lengths, while a low-quality balanced cable might introduce noise at shorter lengths.

It's also worth noting that other factors like radio frequency interference (RFI), electromagnetic interference (EMI), and the quality of the connectors can affect the signal quality.

In any case, if you're planning to run cables a long distance, consider using a DI box or a digital wireless guitar system, which eliminates the need for cables altogether.

Improve Your Guitar and Bass Recordings

Mastering the use of a DI box is an integral part of any audio setup. With its critical role in transforming high-impedance, unbalanced signals into low-impedance, balanced ones, and its functionality in managing common issues like ground loops and overly strong signals, a DI box is key to delivering pristine sound quality.

However, this is just the beginning. A deep understanding of how to record electric guitar and bass can take your audio experience to a new level. That's why Black Ghost Audio offers a Music Production for Beginners course. This course offers a comprehensive introduction to the world of music production, guiding you through the process of recording electric guitar, bass, acoustic guitar, and vocals.

Through Black Ghost Audio's course, you'll get more than just a theoretical understanding—you'll get hands-on experience producing music, learning from an industry professional. By the end of the course, you'll have the knowledge and skills to not only use a DI box effectively but to navigate the entire music production process with confidence.
